Deploying Sitecore on Amazon Web Services AWS
Overview
Sitecore s Customer Engagement Platform (Sitecore) is an enterprise class web content management system that provides an elegant, integrated solution for content management for websites, engagement automation and analytics. Amazon Web Services (AWS) is a leader in reliable, scalable, and inexpensive cloud computing services. AWS offers an excellent platform for hosting and running Sitecore in a cloud environment.
This blog discusses design considerations and techniques for deploying Sitecore on AWS. Following areas are covered:
- General Sitecore architecture
- AWS Sitecore architecture
- Additional AWS considerations
- Estimating AWS cost
Following areas have been left out from this blog:
- Build and change management
- Disaster Recovery
- Active Directory integration
- VPN connectivity and configuration with internal network
- Clustered MS SQL database
General Sitecore Architecture
Basic Sitecore Setup (Two-Servers)
A basic Sitecore setup has two servers
CMS server (application server)
- Windows Server running IIS IIS runs Sitecore content delivery (CD) server the actual website
- IIS also runs Sitecore content management (CM) server the content authoring environment
Database server (generally MS SQL, Oracle is supported as well) running following databases
- Master The Master database is the authoring database it contains all versions of any content or assets
- Core The Core database contains Sitecore application items and settings, as well as the tables containing the .Net membership provider (i.e. users/roles contained in the Sitecore repository)
- Web The Web database is only the latest published version of the content that is driving the live web site. Therefore, it is a subset of the master database, optimized for size and speed. When content is published, or goes through the publishing task of a workflow, the latest content version is copied from the master to the web database.
- Analytics The Analytics database holds all information related to Sitecore Digital Marketing Suite analytics, personalization, etc.
The recommended hardware requirements for these servers are:
- 4 core processor
- 4 GB of RAM
For smaller sites and development/integration/QA instances, it is common to run both the CMS server and database server on a single server.

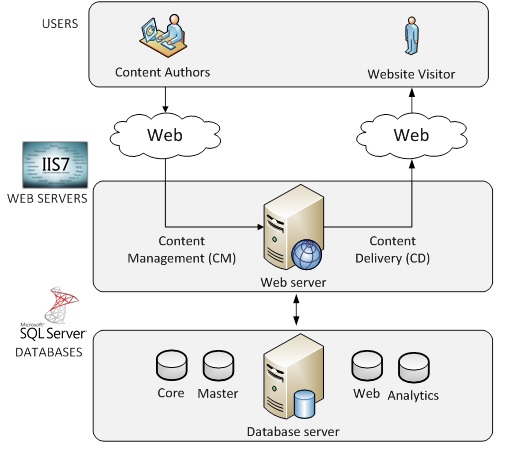

Figure 1. Basic Sitecore Setup
For more information on installing Sitecore please refer to: [Sitecore Installation Guide](http://sdn.sitecore.net/Products/Sitecore%20V5/Sitecore%20CMS%207/Installation.aspx "Sitecore Installation Guide")
Six-Server Sitecore Setup
For mid to enterprise sites, six servers setup is a standard practice.

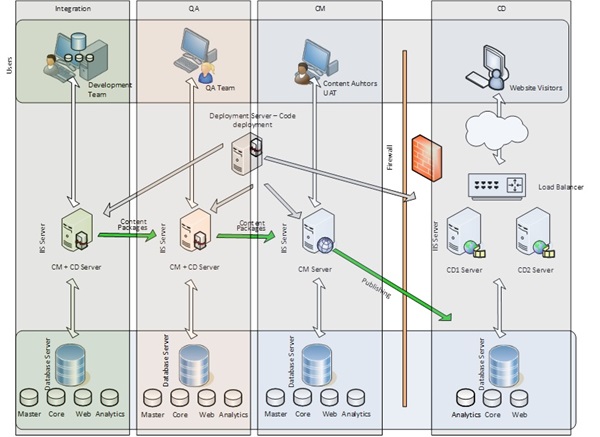

Figure 2. Six-Server Sitecore Setup
Integration Environment
- Integration environment is used by the development team for running the latest code, content and services
- Generally, a deployment server will do automated builds and deployment to the integration server
- Developers' instances of Sitecore will reference the integration Sitecore database in order to ensure a single version of Sitecore data
- Sitecore CM and CD server and database server will be deployed on a single server
QA Environment
- QA server is used for testing latest code releases, content and services
- Generally deployment server will do automated builds and deployment to the QA server.
- Sitecore packages will be deployed from Integration to QA
- Sitecore CM and CD server and database server will be deployed on a single server
Production Content Management (CM) Environment
- Tested code and Sitecore packages are deployed to the Content Management (CM) server for final UAT
- This environment is also used by content authors to create and edit pages/content, and preview and test them
- Generally deployment server will do automated builds and deployment to the CM server
- Sitecore CM and database server will be deployed on a single server
Production Content Delivery (CD) Environment
- Content Delivery (CD) server runs the actual site
- It is recommended that 2 CD servers be used with a load balancer for scalability and higher up-time
- Generally deployment server will do automated builds and deployment to the CD servers
- Approved content can be published from CM server to multiple CD servers manually or using a workflow
- Each CD server will be deployed on a separate server (total 2 servers) and database server will be deployed on a separate server
Note: Additional information on standard Sitecore server configuration and scaling can be found on
AWS Sitecore Architecture

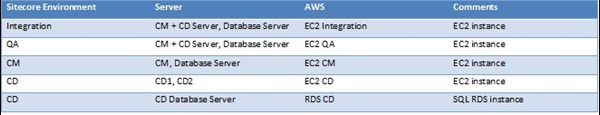

Mapping Six-Server Configuration to AWS

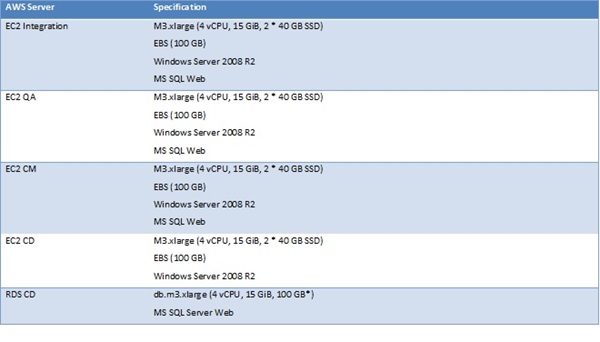

*Depending on the website traffic, content and analytics, the database size will vary.
AWS Architecture

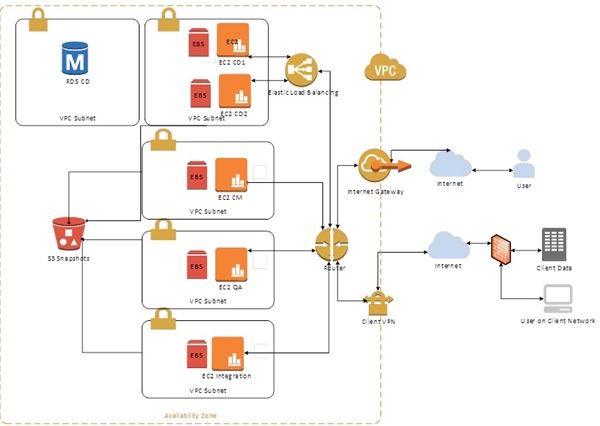

Figure 3. Six-Server Sitecore AWS Setup
- EC2: Elastic Compute Cloud
- VPC: Virtual Private Cloud
- VPN: Virtual Private Network
- S3: Simple Storage Service
- EBS: Elastic Block Storage
- RDS: Relational Database Service
- The AWS setup assumes all servers are setup in a single region and availability zone
- The overall environment is setup as a virtual private cloud (VPC)
- Integration, QA, CM, CD and CD RDS are setup as individual VPC subnets
- Not covered in this post, but any connectivity to client network can be done using VPN
- Internet gateway is used for handling any public traffic (generally to the CD servers over port 80 and 443)
- EC2 CD1 and CD2 servers will be load balanced using an Elastic Load Balancer (ELB)
- RDS CD will serve as the production database for the two CD servers. Note: AWS does offer multi-AZ RDS which is not covered in this post
- RDS CD will have its own VPC subnet
- All EBS instances will be backed-up to Simple Storage Service (S3) using backup scripts or 3rd-party tools
- Not covered in this post, but security and access can be configured using Identity Access Management (IAM), Access Control Lists (ACLs) and routing rules and tables
- This post assumes DNS is managed outside of AWS
Pricing AWS Configuration
Elements Considered for Pricing
Region
US-East / Virginia
Elastic Compute Cloud (EC2) Instances
- Used for Integration, QA, CM and 2 CD servers (5 instances)
- M3.xlarge (M3.xlarge (4 vCPU, 15 GiB, 2 * 40 GB SSD), EBS optimized
- Windows 2008 R2, 64-bit
- MS SQL 2008 Web Edition, 64-bit
- 3 years heavy reserved instance
- 100 GB EBS volumes attached to each EC2 instance
- 5 elastic IPs
- 10 GB/month data transfer out
- 10 GB/month data transfer in
Elastic Load Balancer (ELB)
- 1 ELB
- Total data processed 20 GB/month
Simple Storage Service (S3)
- Storage 100 GB
- Put/Copy/Post/List Requests 10,000
- Get and other requests 100
Relational Database Service (RDS)
- 1 instance for production database (note: another option would be to run regular MS SQL Web server on EC2 instance)
- db.m3.xlarge (4 vCPU, 15 GiB, Standard IOPS)
- SQL Server Web
- 100 GB storage
- 3 years heavy reserved instance
- Backups are managed by AWS up to 100 GB
Virtual Private Cloud
- 1 VPC
- 100% utilized
- Data transfer out 100 GB/month
- Data transfer in 10 GB/month
Support
Basic support
3-Year Pricing
Note: These are estimated representative pricing. For more information please visit the AWS pricing calculator used for this model: [AWS Pricing Calculator](http://calculator.s3.amazonaws.com/index.html#r=IAD&key=calc-FD546A4C-46B8-4722-B000-0EA40710869B "AWS Pricing Calculator")
Elements not considered in pricing
- No Simple Email Service (Most of the sites need some email service/access to SMTP server)
- No BYOL (Bring Your Own License) for SQL or Windows (AWS allows this and this can reduce the overall cost)
- No Route 53 (AWS DNS service)
- No caching (AWS CloudFront)
- Basic monitoring, no CloudWatch
- Basic support (Premium support is available)
- No anti-virus
- No IDS (Intrusion Detection System)
- No Disaster Recovery site
- No multi-region, multi-availability zone setup
